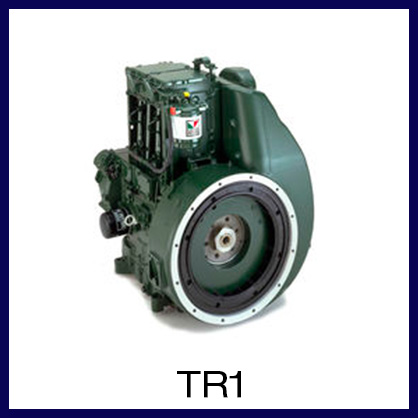

TR1
Power ranges: 5.5 – 9.5 kW; 7.4 – 12.7 bhp
Variable or fixed speed; full load speed range: 1500 – 2500 r/min
Reliable, durable, heavy duty, air cooled diesel engines
Special Attributes
• variable and fixed-speed builds available
• designed for continuous operation in ambient temperatures up to 52°C (122°F)
• oil cooling by means of air flow over deep crankcase finning
Emissions
• models under 19kW comply with EU Stage 3A exhaust emissions regulations
Basic Engine Characteristics
• diesel fuelled
• direct injection
• 1 cylinder
• air cooled
• naturally aspirated
• handstart (electric optional)
Design Features and Equipment
• air cleaner
• inlet and exhaust manifolds
• self vent fuel system with individual fuel injection pumps
• fuel filter
• self regulating plunger type lubricating oil pump
• spin-on lubricating oil filter
• decompressor levers
• flywheel
• flywheel housing with SAE4 flange
• 250 hour service intervals
• mechanical governing:
– variable speed 900-2500 r/min
– fixed speed 1500 and 1800 r/min
• operators’ handbook
